Draytek Vigor 2762AC-K


Draytek Vigor 2762AC-K


The Ideal Home Office Firewall/Router

The Vigor 2762 is an ADSL/VDSL2, Ethernet or 3G/4G router, that’s ideal for your small office or home business/office. It provides connectivity to your PCs or other Internet-connected devices (laptops, tablets, games consoles, smartphones) via its 4 built-in Gigabit Ethernet ports, or using Wireless LAN (on ‘n’ & ‘ac’ models).

The firewall helps protect your network from external threats, as well as the Vigor2762’s built-in Content Filtering which gives you control over what and when your local users can access or download. The Vigor 2762 series can alternatively connect to an Ethernet Internet connection, such as a cable/fiber modem (e.g. Virgin Media) instead of connecting to a ADSL/VDSL line. Compatible 3G & 4G (LTE) modems can also optionally be added to the USB port to provide backup or main Internet connectivity without any fixed line.;


Categories: ,


SoHo Router Firewall for ADSL, VDSL, or Ethernet WAN with Dual-band WiFi 802.11ac / 802.11n

Additional information

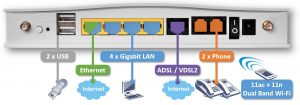

Vigor 2762 VDSL2/ADSL Series Technical Specification (UK Hardware Spec.) Physical Interfaces LAN Ports (Switch): 4 X Gigabit Ethernet (1000Mb/s) Ports LAN Port 4 Switchable with WAN2 WAN Ports: WAN1 : ADSL/VDSL, RJ11 WAN2 : Gigabit Ethernet (1000Mb/s) Ethernet WAN3 : 3G/4G Modem (not supplied) via USB 2.0 Port Performance Firewall: Up to 300Mb/s max IPSec VPN: Up to 60Mb/s max NAT Sessions: 50,000 Wireless LAN Features ('n' and 'ac' Models Only) 802.11g/b/n and 802.11ac (Vigor 2762ac only) Backward Compatibility for 802.11b/g Wireless Features on Vigor 2762ac: 802.11a 802.11ac (5Ghz) 2×2 SU-Mimo (5Ghz) Up to 2 Spatial Streams 866Mb/s Link Rate (5Ghz) + 300Mb/s (2.4Ghz) Dual-band (2.4/5Ghz) simultaneous wireless Extended DFS frequency range Multiple SSID : Create up to 4 virtual wireless LANs (independent or joined) Switchable Hidden SSID Restricted access list for clients (by MAC address) Time Scheduling (WLAN radio can be disabled at certain times of day) Time Scheduling for individual SSIDs NEW! Active Client list in Web Interface Wireless LAN Isolation (from VLAN groups and wired Ethernet interfaces) Station Control, limit wireless client access time per day Wireless Rate-Control Airtime Fairness NEW! Band Steering NEW! Wireless Router-assisted Client Mobility NEW! 64/128-bit WEP Encryption WPA/WPA2 Encryption Packet Aggregation and Channel Bonding Access Point Discovery WDS (Wireless Distribution system) for WLAN Bridging and Repeating Wireless LAN On/Off button 802.11e WMM (Wi-Fi Multimedia) Optional Higher Gain or directional aerials available – Click Here. Firewall & Security Features CSM (Content Security Management): URL Keyword Filtering – Whitelist or Blacklist specific sites or keywords in URLs Block Web sites by category (e.g. Adult, Gambling etc. Subject to subscription) Prevent accessing of web sites by using their direct IP address (thus URLs only) Blocking automatic download of Java applets and ActiveX controls Blocking of web site cookies Block http downloads of file types : Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF Compressed : .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR Multimedia : .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU Time Schedules for enabling/disabling the restrictions Block popular P2P (Peer-to-Peer) file sharing programs Block Instant Messaging programs (e.g. IRC, Skype/Yahoo Messenger etc.) DNS Filter: Use DNS to enforce categorisation DMZ Host 40 Port Redirection rules 40 Open Port rules (10 port ranges per rule) Policy-Based Firewall MAC Address Filter SPI ( Stateful Packet Inspection ) with FlowTrack Mechanism DoS / DDoS Protection IP Address Anti-spoofing E-Mail Alert and Logging via Syslog Bind IP to MAC Address Bandwidth Management Temporary (5 minute) Quick Blocking of any LAN Client Bandwidth Limit (Shared or individual limit) Smart Bandwidth Limitation (Triggered by Traffic / Session) Session Limit Quality of Service (QoS) Guaranteed Bandwidth for VoIP Class-based Bandwidth Guarantee by User-Defined Traffic Categories Layer 2&3 (802.1p & TOS/DCSP) DiffServ Code Point Classifying 4-level Priority for each Direction (Inbound / Outbound) Bandwidth Borrowing App QoS: Classify traffic by Application NEW! Automatic prioritisation of SIP/RTP Voice over IP (VoIP) LAN-to-LAN Dial-Out VPN Facilities 2 Concurrent active VPN Tunnels Tunnelling Protocols: PPTP IPSec L2TP L2TP over IPSec DrayTek SSL IPSec Features: Internet Key Exchange : IKEv1 (Main and Aggressive mode) & IKEv2 NEW! Security Protocols : AH mode, ESP mode DiffieHelman (DH) Groups: IKEv1 : 1,2,5,14 IKEv2 : 1,2,5,14,19,20,21 Encryption: DES / 3DES (168bits) AES (128/192/256bits) – Hardware-Accelerated Authentication – Hardware-Accelerated: MD5 SHA-1 SHA-256 IKE Authentication : Pre-shared Key or X.509 Digital Signature DHCP over IPSec NAT-Traversal (NAT-T) Dead Peer Detection (DPD) Virtual IP Mapping, map a remote IP subnet/range to another range to resolve IP subnet/range conflicts VPN Pass-Through Teleworker Dial-In SSL VPN Facilities 2 Concurrent active VPN Tunnels Tunnelling Protocols: DrayTek SSL MOTP (Mobile One Time Password) for two factor authentication (2FA) Free DrayTek Smart VPN Client software available for Windows, Android, macOS & iOS Network Features 2 LAN (IPv4 & IPv6) Subnets LAN Clients : Up to 253 per subnet Multi Subnet DHCP Servers with DHCP Relay Port-Based VLAN (Inclusive/Exclusive Groups) 802.1q VLAN Tagging NEW! Custom DHCP Option support Port Mirroring Dynamic DNS DNSSEC support NEW! DNS Transparent Proxy DNS Caching LAN DNS (supports CNAME) NTP Client (Synchronise Router Time) Microsoft™ UPnP Support Maximum MTU 1534 Network/Router Management Web-Based User Interface (HTTP / HTTPS) CLI ( Command Line Interface ) / Telnet / SSH Web Console: Access CLI through Web Interface Administration Access Control Configuration Backup / Restore Configuration Import from Vigor 2760 Built-in Diagnostic Function Firmware Upgrade via Web Interface, TFTP, VigorACS Logging via Syslog SNMP v2 & v3 Management with MIB-II TR-069 TR-104 Access Point Management: Centrally Manage 2 DrayTek VigorAP wireless access points NEW! WAN Failover Features WAN Connection Fail-over WAN1 PPPoE/PPPoA Fallback account, used if the primary details are unable to establish a working connection NEW! WAN Budget – gives notification or switches to failover WAN interface if data usage quota exceeded NEW! WAN Protocols DHCP Client Static IP PPPoE PPTP/L2TP (Ethernet WAN only) ADSL & VDSL Compatibility BT Infinity Option 1 & Option 2 Compatible BT SIN 498 MCT Approved Support for G.INP & Vectoring ADSL Standards: ANSI T1.413 Issue2 ITU-T G.992.1 G.dmt (ADSL) ITU-T G.992.2 G.lite ITU-T G.992.3 ADSL2 ITU-T G.992.5 ADSL2+ Annex L (READSL) Annex A Annex M ANFP Issue 3 Compliant/Certified (for Annex A & Annex M) DSL Forum : TR-048/67 & TR-100 VDSL Standards: ITU-T VDSL2 G.993.2 ITU-T G.993.1, G.997.1 Band Plan: G.998, G.997 Annex A, Annex B, Annex C VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a OLR, UPBO, DPBO Supported US0 Supported Loop Diagnostic Mode DSL Forum WT-114 ATM Protocols: RFC-2684/RFC-1483 Multiple Protocol over AAL5 RFC-2516 PPP over Ethernet RFC-2364 PPP over AAL5 PPPoE pass through LAN/WLAN PPPoE/PPPoA Relay Transparent bridge for MPoA Multiple PVC support for Triple Play Applications (up to 8 simultaneous) Support for RFC4638 for MTU up to 1500 Operating Requirements Wall Mountable Operating Temperature : 0 °C ~ 45 °C Storage Temperature : -25 °C ~ 70 °C Humidity 10% ~ 90% (non-condensing) Power Consumption: 24 Watt Max. Dimensions: Length: 207mm Width: 131mm Height: 39mm Weight: 440g (without antenna) Operating Power: DC 12V (via external PSU, supplied) Warranty : Two (2) Years RTB Power Requirements : 220-240VAC
